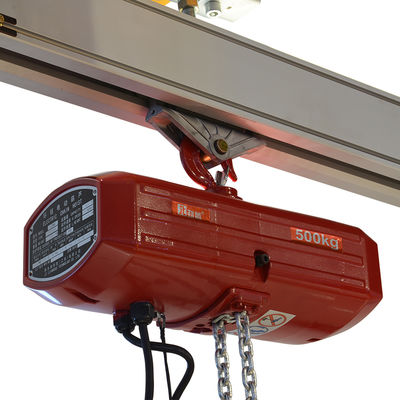

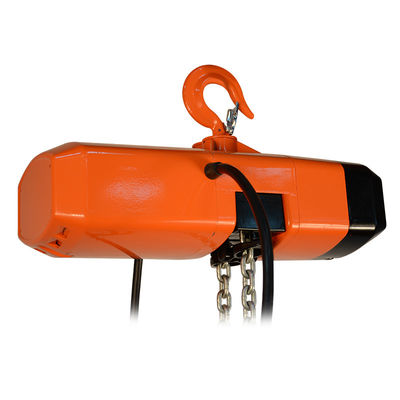

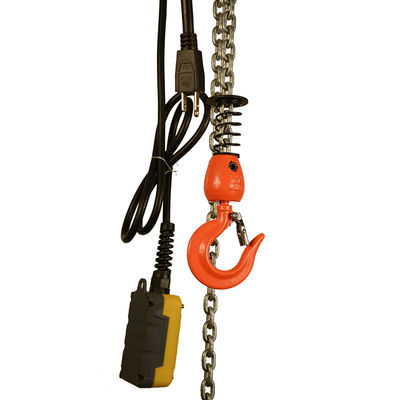

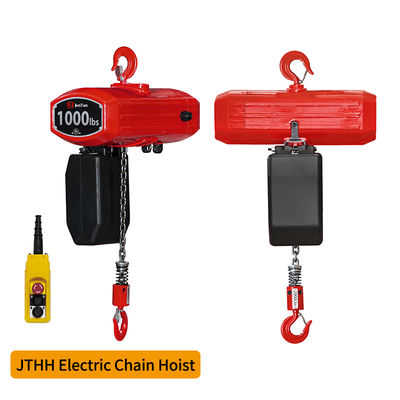

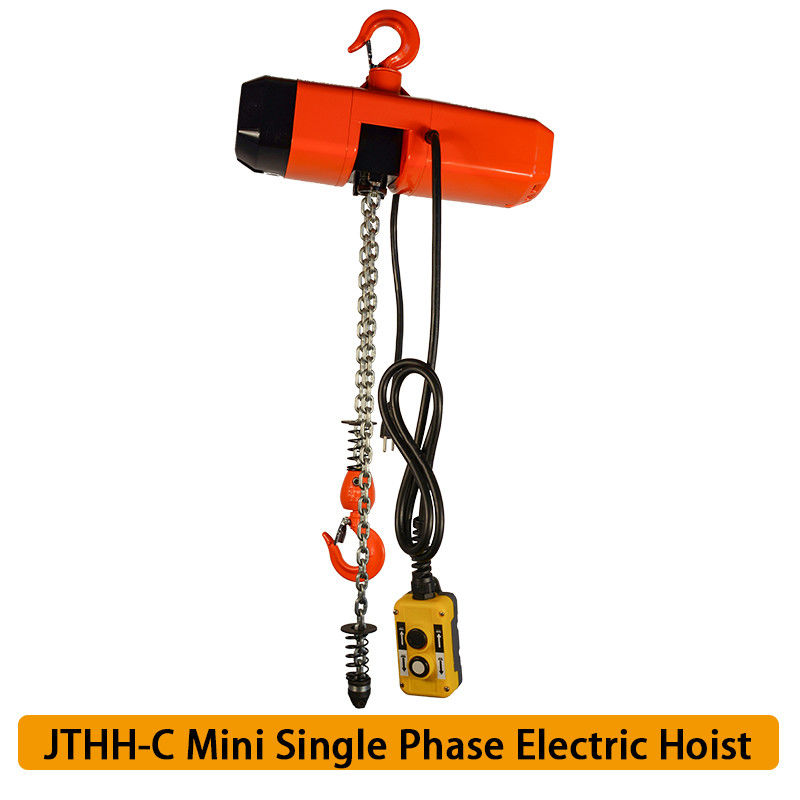

JTHH-C Mini Electric Chain Hoist Meeting Safety Durability and Performance Requirements for Wind Power

Name: JTHH-C Mini Electric Chain Hoist Meeting Safety Durability and Performance Requirements for Wind Power
Brand: Hangzhou JENTAN Machinery Co., Ltd.
SKU: JTHH
Price: 500 USD
Availability: InStock

Brand Name:	Jentan
Model Number:	JTHH
MOQ:	5
Price:	USD 500/PC
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1-10000PCS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL,CE,GS

Product No:

202

Ip Class:

IP54

Material:

Aluminium Of 500kg Electric Chain

Warranty:

1 Year,

Body Material:

Alloy Steel

Control Mode:

Push Button

Maximum Lifting Weight:

50t

Working Degree:

-40 - 40 Degree

Usage:

Stage

Working Grade:

2m/M5

Hoist Height:

3m, 6m, 9m, 12m, 15m

Load Chain Type:

G80, G100

Advantage:

Small Light Duty

Motor Type:

Single Phase

Isolation Grade:

Key Words:

Electric Hoist And Trolley

Company:

Hangzhou JENTAN

Function:

Lifting

Control Type:

Push Button

Body Shell:

Light Aluminum Alloy

Packaging Details:

WOODEN PACKAGE

Highlight:

mini electric chain hoist

mini electric hoist 500 kg

lifting electric chain hoist

Product Description

JTHH-C Mini Electric Chain Hoist Meeting Safety Durability and Performance Requirements for Wind Power 0
Key Features:

Load Options: Available in 60kg, 100kg, 160kg, 250kg, and 380kg load capacities to meet various application needs.

Compact Aluminum Body: Made from high-strength aluminum alloy with precision thin-wall extrusion molding, offering a compact, lightweight, and high-strength design with a sleek appearance. The hoist has passed 8 times breaking strength tests, ensuring high safety factors and achieving IP55 protection.

Durable Rigid Construction: The hoist body is rugged, capable of handling harsh operating environments and conditions.

Simple Structure: Features a simple design with fewer components, utilizing a maintenance-free gear mechanism.

Dust and Water Protection: The hoist has passed IP65 testing, featuring a streamlined dust and water-resistant body.

Special Alloy Steel Lift Gear: The lift gear is made from special alloy steel, heat-treated for increased wear resistance and toughness, and includes dual-side bearings for smooth and quiet operation.

Fanless Design: The advanced fanless design reduces hoist noise and enhances protection levels.

Safety Clutch: Equipped with a powder metallurgy clutch for overload protection, enhancing safety performance.

Motor Features: M4 working grade mechanism, high starting torque cylindrical rotor motor with IP54 protection, high power and efficiency, stable operation.

Specification
JentanCode		W.L.L (t)	Chain falls	Lifting speed (m/min)	power (kw)	Duty circle (%)	chain size (mm)	N.W (KG)	Extra weight per lift (kg)	Dimensions(mm)
JentanCode		W.L.L (t)	Chain falls	Lifting speed (m/min)	power (kw)	Duty circle (%)	chain size (mm)	N.W (KG)	Extra weight per lift (kg)	A	B	C	D	E	F	G	H	L	K	M	N
Single Speed	JTHH1J1-0.125A	0.125	1	16	0.4	40	5*15	30	0.56	439	428	229	165	124	235	92	168	35	41	23	27
	JTHH1F1-0.25A	0.25	1	8	0.4		5*15	30	0.56	439	428	229	165	124	235	92	168	35	41	23	27
	JTHH1F1-0.5A	0.5	1	8	0.9		6.3*19	32	0.88	455	458	229	165	124	235	92	168	40	45	27	30
	JTHH1C2-0.5A	0.5	2	4	0.4		5*15	35	1.3	515	428	229	165	103	235	92	168	40	45	27	30
	JTHH1E1-1B	1	1	6.3	1.6		8*24	56	1.42	545	493	294	193	171	247	114	197	45	49	31	36
	JTHH1C2-1A	1	2	4	0.9		6.3*19	42	1.9	540	458	229	165	103	235	92	177	45	49	31	36
	JTHH1B2-2B	2	2	3.2	1.6		8*24	67	3.0	665	493	294	193	140	247	122	226	55	64	39	42
Double Speed	JTHH2J1-0.125A	0.125	1	5.3/16	0.13/0.4	20/40	5*15	33	0.56	439	428	229	165	124	235	92	168	35	41	23	27
	JTHH2F1-0.25A	0.25	1	2.7/8	0.13/0.4		5*15	33	0.56	439	428	229	165	124	235	92	168	35	41	23	27
	JTHH2F1-0.5A	0.5	1	2.7/8	0.3/0.9		6.3*19	35	0.88	455	458	229	165	124	235	92	168	40	45	27	30
	JTHH2C2-0.5A	0.5	2	1.3/4	0.13/0.4		5*15	38	1.3	515	428	229	165	103	235	92	168	40	45	27	30
	JTHH2E1-1B	1	1	2.1/6.3	0.53/1.6		8*24	59	1.42	545	493	294	193	171	247	114	197	45	49	31	36
	JTHH2C2-1A	1	2	1.3/4	0.3/0.9		6.3*19	45	1.9	540	458	229	165	103	235	92	177	45	49	31	36
	JTHH2B2-2B	2	2	1.1/3.2	0.53/1.6		8*24	70	3.0	665	493	294	193	140	247	122	226	55	64	39	42

If you have any questions or need further information, please feel free to contact us.
