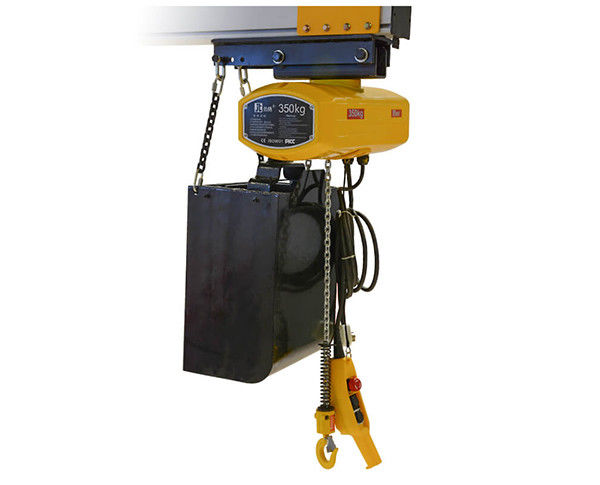

Heavy Duty Wind Power Electric Chain Hoist IP54 Waterproof

Name: Heavy Duty Wind Power Electric Chain Hoist IP54 Waterproof
Brand: Hangzhou JENTAN Machinery Co., Ltd.
SKU: JTHH
Price: 350.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Jentan

Certification: CE;GS;EN;ISI;AU;UL;CUL;TUV

Model Number: JTHH

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: Negotiation

Delivery Time: 7-60 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 500000pcs per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Heavy Duty Electric Chain Hoist, IP54 Waterproof Electric Chain Hoist, Waterproof heavy duty chain block


Chain Dia:	11.2 Mm	Port:	Chongqing Port
Chain:	G80 Chain	Control Mode:	Push Button
Maximum Lifting Height:	3m	Electric:	Schneider
Lifting Motor:	1.5kw	Protection Class:	IP54
Insulation Grade:	F Class	Double Speed:	Yes
Colour:	Optional	Air Pressure:	6Bar
Lifting Capacity:	1-2 T	Rated Loading Capacity:	0.5-50t
Body Material:	Alloy Steel

Chain Dia:	11.2 Mm
Port:	Chongqing Port
Chain:	G80 Chain
Control Mode:	Push Button
Maximum Lifting Height:	3m
Electric:	Schneider
Lifting Motor:	1.5kw
Protection Class:	IP54
Insulation Grade:	F Class
Double Speed:	Yes
Colour:	Optional
Air Pressure:	6Bar
Lifting Capacity:	1-2 T
Rated Loading Capacity:	0.5-50t
Body Material:	Alloy Steel

Description

Heavy Duty Wind Power Electric Chain Hoist IP54 Waterproof

JTHH Series Wind Power Electric Chain Hoist

Large power motor, high speed, Ip54.

With the modularized electronic control system,the hoist has

good quality sealing.The material is age resisting, improving

the safe life.

Adopt disc electromagnetic brake, braking torque is large, fast,

reliable and low noise.

Alloy steel forged hook,with heat treatment.the hook won't be

fractured even if overload.

Aluminium alloy gearbox,light weight but tough, anti-corrosion.

Switch control, lP 65,with voltage security.

JTHH Wind Power Electric Chain Hoist
Jentan Code		W.L.L(t)	Lifting Speed (m/min)	Hook Dostance (mm)	Power (kw)	Duty Circle (%)	Chain Size (mm)	N.W. (kg)	Extra Weight Per Lift (kg)	Dimensions(mm)
Jentan Code		W.L.L(t)	Lifting Speed (m/min)	Hook Dostance (mm)	Power (kw)	Duty Circle (%)	Chain Size (mm)	N.W. (kg)	Extra Weight Per Lift (kg)	A	B	C	D	E	F	G	H	L	K	M	N
Dual Speed	JTHH2J1-0.25AF	0.25	5.3/16	439	0.3/0.9	30	5X15	33	0.56	439	428	229	165	124	235	92	168	35	41	23	27
	JTHH2L1-0.32AF	0.32	8/24	439	0.53/1.6	30	5X15	40	0.56	439	483	229	165	124	235	92	168	35	41	23	27
	JTHH2L1-0.35AF	0.35	8/24	439	0.53/1.6	30	5X15	40	0.56	439	483	229	165	124	235	92	168	35	41	23	27
	JTHH2G1-0.5AF	0.5	3.3/10	439	0.53/1.6	40	6.3X19	38	0.86	450	458	229	165	124	235	92	168	40	45	27	30
	JTHH2G1-0.6AF	0.6	3.3/10	455	0.53/1.6	30	6.3X19	38	0.88	450	458	229	165	124	235	92	168	40	45	27	30
	JTHH2G1-0.75BF	0.75	3.3/10	545	0.53/1.6	30	7X21	59	1.09	540	493	294	193	171	247	114	197	45	49	31	36
	JTHH2G1-0.8BF	0.8	3.3/10	545	0.53/1.6	30	7X21	59	1.09	540	493	294	193	171	247	114	197	45	49	31	36
