Electric Powered Mechanical Lifting Devices Gear Trolley With Chain Block

Name: Electric Powered Mechanical Lifting Devices Gear Trolley With Chain Block
Brand: Hangzhou JENTAN Machinery Co., Ltd.
SKU: JTGT-D
Price: 2,258.80 USD
Availability: InStock

Brand Name:	Jentan
Model Number:	JTGT-D
MOQ:	1 piece
Price:	Negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500000pcs per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE;GS;EN;ISI;AU;UL;CUL;TUV

Material:

Steel/Aluminum

Certifications:

OSHA/ANSI/CE

Portability:

Portable/Stationary

Control Method:

Remote Control/Manual Control

Warranty:

1-5 Years

Height Range:

Up To 20 Feet

Capacity:

Up To 10,000 Lbs

Power Source:

Electric/Hydraulic/Manual

Safety Features:

Overload Protection/Brakes/Locking Mechanisms

Usage:

Industrial/Construction/Warehouse

Additional Features:

Adjustable Legs/Extendable Boom/Telescoping Mast

Lifting Mechanism:

Chain/Winch/Scissor

Type:

Manual/Powered

Weight:

Varies Depending On Capacity And Type

Packaging Details:

Carton

Highlight:

Electric Powered Mechanical Lifting Devices

Mechanical Lifting Devices Gear Trolley

Electric Powered gear trolley with chain block

Product Description

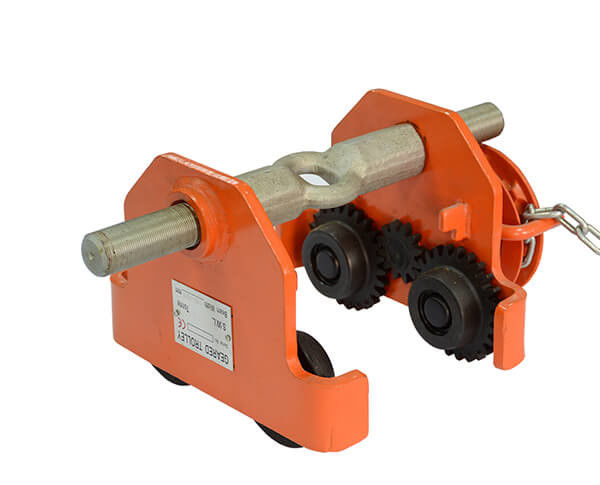

JTGT-D Geared Trolley

Operated by pulling the hand chain, it smoothly moves along the lower edge of an I-beam.

Applicable in various settings such as factories, mines, wharves, docks, warehouses, construction sites, and machine rooms, this device is utilized for installing machinery equipment and lifting goods.

Designed for environments without power, it prioritizes safety and simple maintenance.

With a compact structure and a small package size, its wheel distance is easily adjustable, catering to different types of I-beams.

It boasts high transmission efficiency, requiring minimal output, and can navigate with a small turning diameter. The hinge links the left and right side plates to ensure equal force distribution.

It is imperative not to exceed the rated capacity of the hand trolley, and working or passing under a load is strictly prohibited to prevent accidents. Regularly applying grease to the bearings and rail surfaces is necessary, simultaneously checking for any hardware looseness. In the presence of anomalies, discontinue product use immediately, investigate the cause, and address it. Regular maintenance is essential for optimal functionality.

Electric Powered Mechanical Lifting Devices Gear Trolley With Chain Block 0

CSL-Y4

Model			0.5t	1t	2t	3t	5t
Rated capacity		t	0.5	1	2	3	5
Test load		KN	0.25	12.5	25	37.5	62.5
Running height		m	3
Chain pull to lift full load		N	45	55	100	75	120
Min.radus of curve		m	0.9	1	1.2	1.3	1.4
mm Dimensions	A	Pyion	292	300	314	350	359
	A	Lengthen pyion	377	385	395	409	414
	B		225	252	300	360	392
	C		173	188	226	289	313
	E		33	31	32	46	47
	F		≈3
	K		25	30	40	48	60
	L		30	35	47	58	70
mm Adlustable beam width	M	Pyion	50-220	58-220	66-220	74-220	90-220
mm Adlustable beam width	M	Lengthen pyion	160-305	160-305	160-305	160-305	160-305
Extra weight per meter of extra lift		kg	≈1
Netweight	kg	Pyion	11.4	14.7	21.8	36.7	48.5
Netweight	kg	Lengthen pyion	11.8	15.2	22.6	37.9	50
