Mechanical Lifting Devices for Diverse Applications JTHW-B Hand Winch JC-E Type Lever Winch Specifications

Mechanical Lifting Devices for Diverse Applications JTHW-B Hand Winch JC-E Type Lever Winch Specifications

Brand Name: Jentan
Model Number: JTHW-B
MOQ: 1 piece
Price: Negotiation
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 500000pcs per year
Detail Information
Place of Origin:
China
Certification:
CE;GS;EN;ISI;AU;UL;CUL;TUV
Highlight:

hand winch with warranty

,

mechanical lifting hand winch

,

JTHW-B manual winch

Product Description

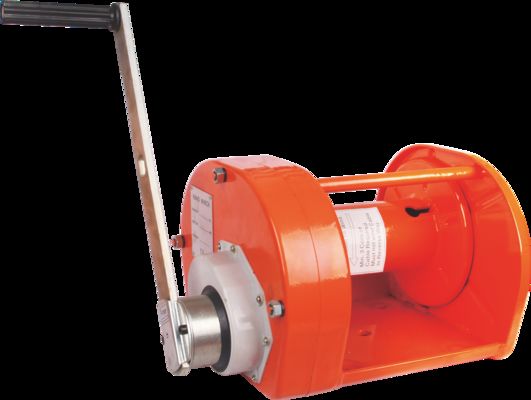

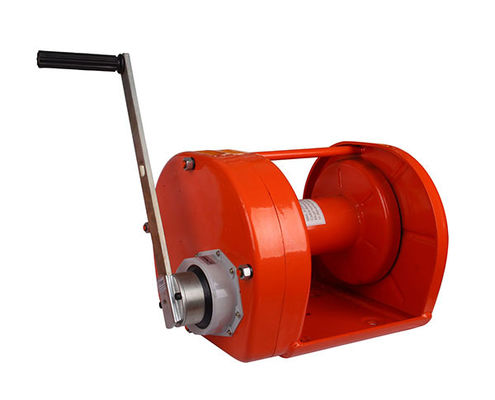

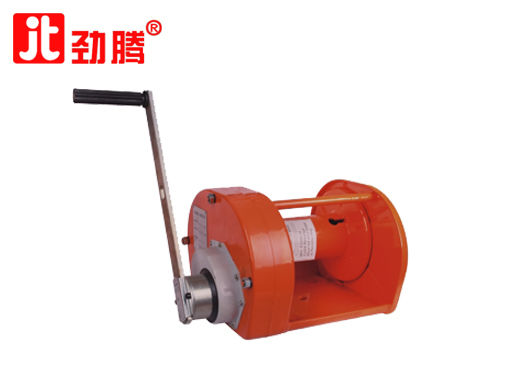

JTHW-B Hand Winch – Precision Manual Control with Automatic Safety for Marine & Industrial Applications

The JTHW-B Hand Winch is engineered to deliver reliable, controlled lifting and lowering in demanding environments, particularly suited for marine operations, sailing adjustments, and general industrial tasks. Designed with an automatic friction brake system that engages instantly when the handle is released, it ensures secure load holding and prevents runaway situations—providing operators with confidence and safety in every use. Its self‑locking brake mechanism and robust construction make it ideal for precise applications such as boat davit operation, sailboat keel adjustment, equipment positioning, and various lifting/pulling scenarios where control and reliability are paramount.

Key Features & Benefits

  • Automatic Friction Brake System: Engages immediately upon handle release to securely hold loads, eliminating the risk of accidental lowering or runaway.

  • Self‑Locking Brake Design: Provides enhanced control and safety during lifting, lowering, and static holding operations.

  • Marine‑Optimized Performance: Specifically suited for boat lifting on davits, sailboat keel height adjustment, and other nautical applications.

  • Robust & Corrosion‑Resistant Build: Constructed from durable materials with protective finishes to withstand harsh marine and outdoor conditions.

  • Smooth & Precise Operation: Delivers consistent pulling power and fine control for delicate positioning tasks.

  • Versatile Mounting Options: Compatible with a wide range of fixed or mobile setups in marine, workshop, and light industrial environments.

Mechanical Lifting Devices for Diverse Applications JTHW-B Hand Winch JC-E Type Lever Winch Specifications 0


Mechanical Lifting Devices for Diverse Applications JTHW-B Hand Winch JC-E Type Lever Winch Specifications 1
JC-E Type Lever WINCH SPEIFICATIONS
Model 0.5t 1t 2t 3t

Safe Working Load
t 0.5 1 2 3

Test load
KN 6.125 12.25 24.5 36.75

Adopted wire rope  dia.×length
Φ6.3×40 Φ8×40 Φ9×40 Φ12.5×40

Transmission ratio
4.33:1 12.19:1 22.68:1 29.16:1

The max length of link-pole action
mm 350 350 350 350

Min.force of hand tum
N 120 120 130 180

mm
Dimensions
A Φ60 Φ76 Φ90 Φ100
B Φ140 Φ175 Φ190 Φ230
C 150 154 195 205
D 100 110 155 155
E Φ15 Φ18 Φ18 Φ18
F 403 443 490 549
H 182 214 230 296
I 130 170 170 170
J 245 266 300 365

Net weight
kg 14.4 19.7 25.1 44.3
