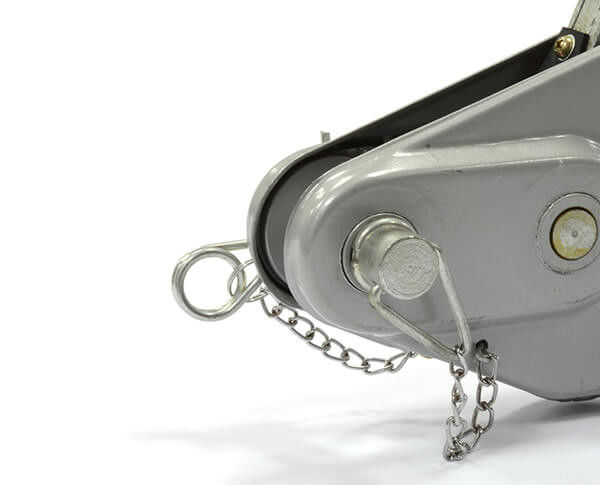

JTWW-A Wire Rope Winch(Aluminum Housing)

JTWW-A Wire Rope Winch (Aluminum Housing) Features:

Equipped with an adjustable handle for effortless operation.
The backward lever and Forward lever are placed in tandem, ensuring a slim design and efficient power transfer along the center.
Includes spare shear pins conveniently located in the carrying handle.
Built-in shearing pin prevents overload, functioning at approximately 50% overload, and allows for pin replacement without removing the load.
The anchor bolt provides versatile connection possibilities with load hooks, sling ropes, and sling chains.
Stamped serial number for easy identification.
Constructed with a high-strength cast aluminum alloy body, ensuring a lightweight and simple operation. The smooth contour design with a large flat bottom surface enhances stability in both horizontal and vertical working positions.
Galvanized steel wire rope mounted on a reel, each rope operationally tested to 150% of the rated capacity and issued with an individual test certificate.
Rope clamp system that can be easily disengaged with a lever, facilitating the smooth installation of the wire rope.

ZNL Series Wire Rope Winch
Model		NHSS0.8	NHSS1.0	NHSS1.6	NHSS3.2
Rated capacity	tons	0.8	1.0	1.6	3.2
Pulling capacity	tons	1.2	1.5	2.4	4.8
Rated forward travel	mm	≥52	≥52	≥55	≥28
Effcient length of forward handle	mm	825	825	1200	1200
Drive step		1	1	1	2
Rope diameter	mm	8	8	11	16
Standard length of rope	m	20	20	20	20
Net weight	kg	16	16	24	48
Rated forward hand power	N	≤284	≤353	≤412	≤441
Max.Overall size	mm	428×64×235	428×64×235	545×97×286	660×116×350
