JTPB-E Type Champion Snatch Pulley shackle Type for Heavy Duty Mechanical Lifting Devices with Large Sheave Dia

Name: JTPB-E Type Champion Snatch Pulley shackle Type for Heavy Duty Mechanical Lifting Devices with Large Sheave Dia
Brand: Hangzhou JENTAN Machinery Co., Ltd.
SKU: JTPB-E
Price: 2,258.80 USD
Availability: InStock

Brand Name:	Jentan
Model Number:	JTPB-E
MOQ:	1 piece
Price:	Negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500000pcs per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE;GS;EN;ISI;AU;UL;CUL;TUV

Highlight:

Champion snatch pulley shackle type

JTPB-E snatch pulley lifting device

Mechanical lifting pulley with shackle

Product Description

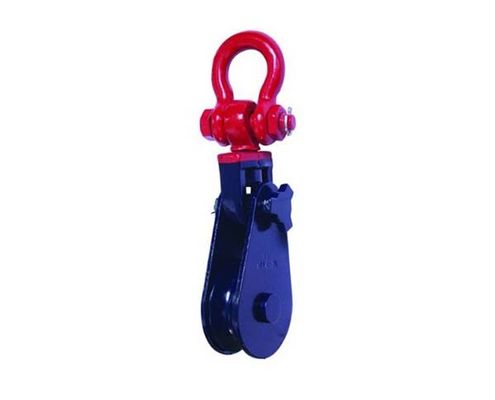

JTPB-E Type Champion Snatch Pulley(shackle Type)

The Champion Snatch Pulley (Shackle Type) is a high-efficiency pulley system engineered for rapid deployment in critical rigging and rescue operations. Its integrated swivel shackle allows for quick, secure connections to anchor points without additional hardware, saving vital time. Built with a high-efficiency sheave and robust construction, it minimizes friction and provides the reliable performance needed to move heavy loads and save lives.

Type	S.W.L.	Sheave Dia	A1	B	C	For Wire Dia	N.W
shackle	(t)	D(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
LS3"x1	2	75	286	82	70	7-9	4
LS4-1/2"x1	4	115	345	120	70	10-12	6.1
LS6"x1	4	150	399	160	70	16-18	13.8
LS6"x1	8	150	475	160	93	20-22	14.4
LS8"x1	8	200	528	210	93	20-22	16
LS8"x1	15	200	663	230	102	22-24	24
LS10"x1	10	250	679	260	115	24-26	37.5
LS10"x1	12	250	679	260	115	24-26	42
LS12"x1	12	300	767	310	133	24-26	56
LS12"x1	15	300	884	310	133	26-28	65
LS14"x1	22	355	952	365	140	28-32	90
LS16"x1	22	400	1019	415	140	28-32	108
LS16"x1	30	400	1126	415	155	32-35	135
LS20"x1	30	500	1256	514	162	32-35	208
LS24"x1	50	600	1525	625	240	46-50	418
