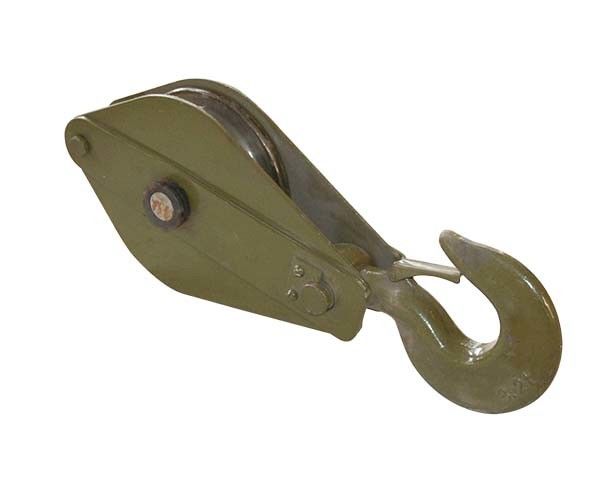

JTPB-F1 Single Close Hook Pulley

Product Details

Place of Origin: China

Brand Name: Jentan

Certification: CE;GS;EN;ISI;AU;UL;CUL;TUV

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: Negotiation

Delivery Time: 7-60 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 500000pcs per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Description

JTPB-F1 Single Close Hook Pulley

名称	型号	额定起重量	实验载荷	外形尺寸					钢丝直径		勾口和环腔尺寸				净重
名称	型号	额定起重量	实验载荷	H	H1	B	Lmax	Φ	适用	最大	D	O	R1	R
单轮闭口滑车	Model	t	KN	mm							mm				kg
	HQGZ1-0.32	0.32	5.12	230	200	90	48	-	-	-	28	>=20	10	-	1.58
	HQLZ1-0.32	0.32	5.12	230	200	90	48	-	-	-	28	>=20	10	-	1.44
	HQG1-0.32	0.32	5.12	230	200	90	48	-	-	-	28	>=20	10	-	1.8
	HQL1-0.32	0.32	5.12	230	200	90	48	-	-	-	28	>=20	-	-	1.66
	HQGZ1-0.5	0.5	8	260	230	98	54	-	6.2	7.7	31.5	>=22	11	-	2.32
	HQLZ1-0.5	0.5	8	260	230	98	54	-	6.2	7.7	31.5	>=22	-	-	2.1
	HQG1-0.5	0.5	8	260	230	98	54	-	6.2	7.7	31.5	>=22	11	-	2.3
	HQL1-0.5	0.5	8	260	230	98	54	-	6.2	7.7	31.5	>=22	-	-	2.08
	HQGZ1-1	1	16	315	285	116	63	-	7.7	11	37.5	>=27	14	-	3.78
	HQLZ1-1	1	16	315	285	116	63	-	7.7	11	37.5	>=27	-	-	3.41
	HQG1-1	1	16	315	285	116	63	-	7.7	11	37.5	>=27	14	-	3.75
	HQL1-1	1	16	315	285	116	63	-	7.7	11	37.5	>=27	-	-	3.38
	HQGZ1-2	2	32	405	370	152	79	-	11	14	45	>=32	19	-	6.64
	HQLZ1-2	2	32	405	370	152	79	-	11	14	45	>=32	19	-	6.06
	HQG1-2	2	32	405	370	152	79	-	11	14	45	>=32	19	-	6.71
	HQL1-2	2	32	405	370	152	79	-	11	14	45	>=32	-	-	6.13
	HQGZ1-3.2	3.2	51.2	470	440	176	90	-	12.5	15.5	50	>=37	21	-	10.24
	HQLZ1-3.2	3.2	51.2	470	440	176	90	-	12.5	15.5	50	>=37	-	-	9.5
	HQG1-3.2	3.2	51.2	470	440	176	90	-	12.5	15.5	50	>=37	21	-	12.17
	HQL1-3.2	3.2	51.2	470	440	176	90	-	12.5	15.5	50	>=37	-	-	11.43
	HQGZ1-5	5	80	570	540	212	105	-	15.5	18.5	60	>=42	26.5	-	16.94
	HQLZ1-5	5	80	570	540	212	105	-	15.5	18.5	60	>=42	-	-	15.97
	HQG1-5	5	80	570	540	212	105	-	15.5	18.5	60	>=42	26.5	-	18.46
	HQL1-5	5	80	570	540	212	105	-	15.5	18.5	60	>=42	-	-	17.49
	HQGZ1-8	8	128	730	685	280	125	-	23	23	75	>=56	33.5	-	31.28
	HQLZ1-8	8	128	730	685	280	125	-	23	23	75	>=56	-	-	29.21
	HQG1-8	8	128	730	685	280	125	-	23	23	75	>=56	33.5	-	35.98
	HQL1-8	8	128	730	685	280	125	-	23	23	75	>=56	-	-	33.91
	HQGZ1-10	10	160	810	775	316	144	-	24.5	24.5	85	>=61	37.5	-	46.49
	HQLZ1-10	10	160	810	775	316	144	-	24.5	24.5	85	>=61	-	-	44.43
	HQG1-10	10	160	810	775	316	144	-	24.5	24.5	85	>=61	37.5	-	46.4
	HQL1-10	10	160	810	775	316	144	-	24.5	24.5	85	>=61	-	-	44.17
	HQG1-16	16	224	1010	960	406	169	-	28	31	106	>=81	50	-	109.84
	HQL1-16	16	224	1010	960	406	169	-	28	31	106	>=81	-	-	103.23
	HQG1-20	20	280	1150	1065	452	180	-	31	35	118	>=90	52.5	-	155.17
	HQL1-20	20	280	1150	1065	452	180	-	31	35	118	>=90	-	-	145.12
	HQG1-32	32	512	1480	1400	580	240	-	35	38	140	>=106	-	-	300
	HQL1-32	32	512	1480	1400	580	240	-	35	38	140	>=106	-	-	290
