JTAL Aluminium Alloy Lever Hoist Adjustable and Rotatable Chain for Improved Efficiency

Name: JTAL Aluminium Alloy Lever Hoist Adjustable and Rotatable Chain for Improved Efficiency
Brand: Hangzhou JENTAN Machinery Co., Ltd.
SKU: JTAL
Price: 2,250.00 USD
Availability: InStock

Brand Name:	Jentan
Model Number:	JTAL
MOQ:	1 piece
Price:	Negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500000pcs per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE;GS;EN;ISI;AU;UL;CUL;TUV

Load Capacity:

500kg

Voltage:

220V

Power Source:

Electric

Chain Diameter:

6mm

Lifting Height:

Frequency:

50Hz

Protection Grade:

IP54

Control Method:

Remote Control

Hoisting Speed:

5m/min

Chain Length:

Chain Type:

Stainless Steel

Material:

Stainless Steel

Operating Temperature:

0-40℃

Color:

Silver

Lift Speed:

Manual

Origin:

China

Custom Service:

OEM

Key Word:

Manual Lever Hoist, Industrial Lifting

Packing:

Wooden Packing

Chain Falls:

1-3

Packaging Details:

Wooden Box

Highlight:

ODM Stainless Steel Hoist

Stainless Steel Hoist Lever Block

ODM stainless steel chain fall

Product Description

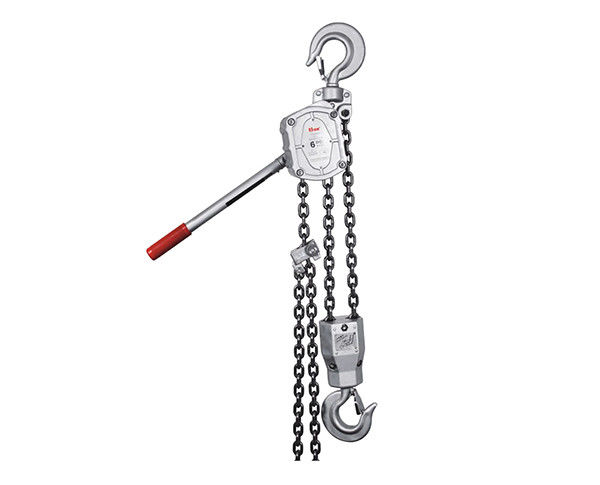

JTAL Lever Block

Introducing the international high-end technology.
Safety factor: four times.
Small and light, easy to carry.
High work efficiency and light hand force.
Easy to maintain and.
The hoist body uses high-strength alloy steel and in sealed gear cover, to assure safety.
The brake system uses the two pawls, with higher safety and stability.
The handle lever is designed in disconnect-type and is easy to carry. When overloaded, the handle will be deformed to remind the user.
With brake clutch device, the chan can be adjusted and rotated when non-loaded. It can help to adjust the hook position and improve work efficiency.

JTAL Aluminium Alloy Lever Hoist Adjustable and Rotatable Chain for Improved Efficiency 0

Model		JTAL-D3	JTAL-D6	JTAL-D9	JTAL-D12
Capacity	t	3	6	9	12
Standard	m	1.5	1.5	1.5	1.5
Running test	kN	36.8	73.5	110	147
Effort required to lift max load	N	240	260	280	280
Load chain diameter	mm	8	8	8	8
Falls		1	2	3	4
Min distance between hooks(H)	mm	445	575	770	720
Dimensions(mm)	A	205	205	205	205
	B	125	125	125	125
	C	149	195	253	318
	D	460	460	460	460
	E	31	39	45	53
	φ	45	55	65	70
N.W.	kg	13.2	20.5	35.5	36.5
Loading Chain Weight/Meter	kg	1.42	2.84	4.26	5.68
