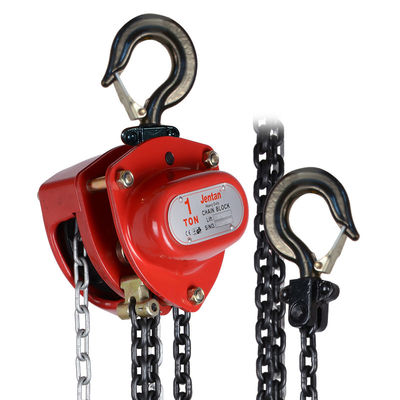

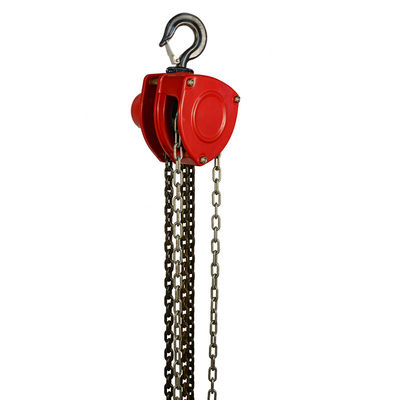

Chain Hoist for Safe and Easy Lifting Manual Chain Hoist of Heavy Objects in Industrial and Mining Environments

Professional-Grade Manual Chain Hoist: Engineered for Durability, Safety & Efficiency in Demanding Applications

This heavy-duty manual chain hoist is precision-engineered for professionals who demand reliability, safety, and high performance in industrial, construction, and workshop environments. Its compact design and low headroom enable flexible installation and operation in confined spaces, while advanced mechanical components ensure smooth lifting, exceptional durability, and operator safety.

Premium Engineering & Key Features

High-Strength Gearing System: Features high-precision machined gears with superior strength and toughness for reliable power transmission and long service life.

Efficient Sealed Bearing: Incorporates a high-precision sealed bearing that reduces hand force requirement and increases mechanical efficiency, ensuring smooth and effortless operation.

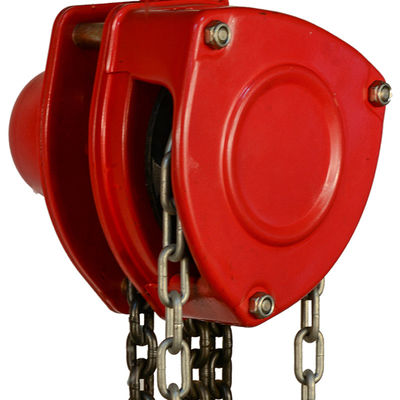

Impact-Resistant Gear Cover: Reinforced cover enhances overall strength and hardness, protecting internal components in rugged working conditions.

Dual Pawl Brake Safety System: Equipped with a reinforced double pawl brake system (pawl, ratchet disc, and brake disc) for failsafe load holding and secure braking control.

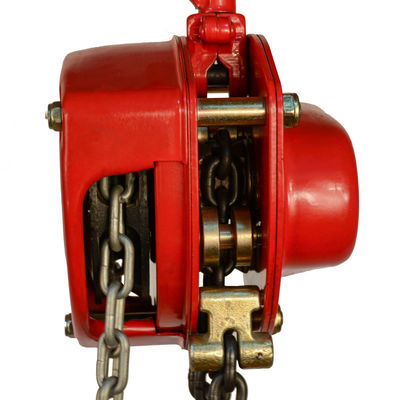

Precision Chain Guidance: Dual high-precision CNC-machined load chain guides ensure stable, smooth lifting and lowering while minimizing chain wear.

Weather & Debris Protection: Dust cover on the brake system effectively prevents intrusion of rain, mortar, and dust, maintaining performance in outdoor or harsh environments.

Ergonomic Hand Chain Design: Optimized hand chain wheel groove and unique curled-edge hand cover prevent chain stacking during rapid operation, enhancing usability and safety.

High-Strength Forged Hook: Made from high-quality alloy steel forging for secure load attachment and maximum durability.

Ultra-Strong Load Chain: T80 high-precision load chain offers exceptional tensile strength (up to 1000 N/mm²) and durability.

Safety-First Connection: High-strength chain end connections are designed with a 2.5 times safety factor, exceeding standard safety requirements.

Certified Endurance: Built to be super robust, successfully passing over 1500 cycles of EN 13157 endurance testing for proven reliability under repeated use.

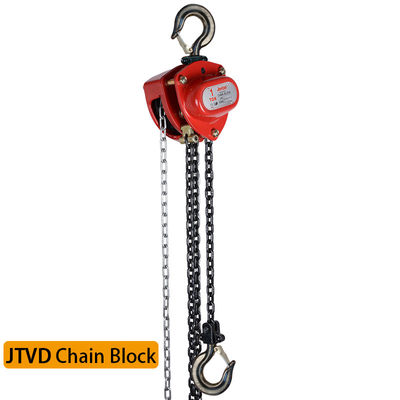

The JTVD chain hoist offers a variety of standard and optional configurations to meet different user needs. These include but are not limited to:

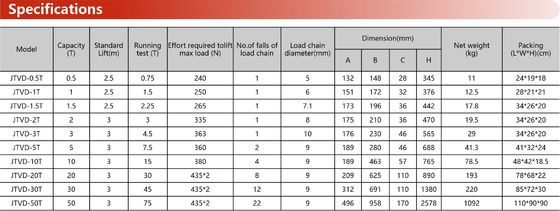

Technical Parameters:
