JTPL-300A/JTPL-500A Hydraulic Pneumatic Scissor Lift Table for Material Handling Transport Trolley Electric Scissor Lift Table for Coal Mining Industry and More

Name: JTPL-300A/JTPL-500A Hydraulic Pneumatic Scissor Lift Table for Material Handling Transport Trolley Electric Scissor Lift Table for Coal Mining Industry and More
Brand: Hangzhou JENTAN Machinery Co., Ltd.
SKU: JTPL-300A/JTPL-500A
Price: 2,250.00 USD
Availability: InStock

Brand Name:	Jentan
Model Number:	JTPL-300A/JTPL-500A
MOQ:	1 piece
Price:	Negotiation
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	500000pcs per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE;GS;EN;ISI;AU;UL;CUL;TUV

Features:

Heavy Duty, Durable, Easy To Maneuver

Oem Service:

Available

Handle Type:

Foldable

Number Of Wheels:

Type:

Transport Trolley

Weight Capacity:

300kg

Color:

Silver

Usage:

Transportation

Application:

Warehouse, Factory, Supermarket

Wheel Type:

Rubber

Load Type:

Heavy Duty

Size:

L 900mm X W 600mm X H 900mm

Material:

Steel

Surface Treatment:

Powder Coating

Warranty:

1 Year

Feature:

Durable

Handle Length:

30 Inches

Overall Size:

80cm X 50cm X 90cm

Adjustable Handle:

Yes

Overall Dimensions:

1200x700x900mm

Oem/Odm:

Available

Packing:

Carton

Wheel Diameter:

100mm

Packaging Details:

Wooden Box

Highlight:

820 times transport trolley

500 times transport trolley

50/55mm table transport trolley

Product Description

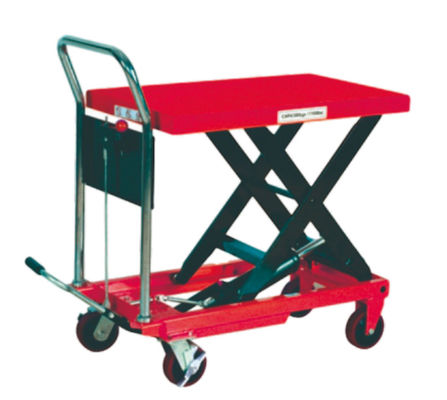

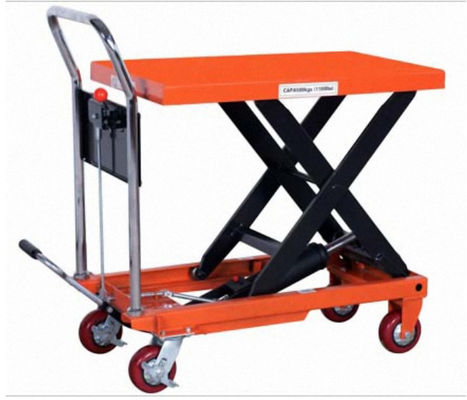

JTPL-300A/JTPL-500A Hydraulic Pneumatic Scissor Lift Table

JTPL-300A / JTPL-500A Hydraulic Pneumatic Scissor Lift Table – Safe, Reliable & Versatile Lifting for Industrial & Workshop Use

The JTPL-300A and JTPL-500A Hydraulic Pneumatic Scissor Lift Tables are engineered to deliver stable, controlled lifting in industrial, warehouse, and workshop environments. Combining hydraulic precision with pneumatic ease of operation, these tables provide smooth vertical movement for loads up to 300 kg (660 lb) or 500 kg (1100 lb). Designed with safety and durability in mind—featuring overload protection, integrated brakes, and CE-compliant construction—they are ideal for positioning workpieces, supporting assembly tasks, and improving ergonomics in material handling.

Product Overview

Built for daily use in demanding settings, the JTPL series lift tables minimize operator strain while maximizing productivity. Their compact footprint and low starting height allow easy loading, while the robust scissor mechanism and high-quality hydraulic system ensure reliable, long-lasting performance. Whether used in manufacturing, logistics, or automotive repair, these tables offer a practical and safe solution for elevating materials, tools, and equipment.

Key Features & Benefits

Hydraulic-Pneumatic Operation: Combines hydraulic lifting stability with pneumatic control for smooth, effortless adjustment.
Heavy-Duty Construction: Welded steel frame and reinforced scissor arms provide durability under repeated use.
Integrated Safety Systems: Includes overload protection and rear wheel brakes to secure the table during operation.
Low Profile Design: Starting heights as low as 285 mm (JTPL-300A) or 290 mm (JTPL-500A) enable easy roll-on loading.
Large Work Surface: Spacious table dimensions (820 mm × 500 mm) accommodate a variety of parts, tools, or containers.
CE-Compliant Design: Manufactured in accordance with European safety and performance standards.

JTPL-300A/JTPL-500A Hydraulic Pneumatic Scissor Lift Table for Material Handling Transport Trolley Electric Scissor Lift Table for Coal Mining Industry and More 0
Ensuring a dependable and durable lifespan, the high-quality hydraulic system is crafted in compliance with CE requirements.

The equipment is equipped with a protective bracket and rear wheel brakes, along with an overload protection feature.

Model	TFY30	TFY50
Load Capacity	300Kg,660lb	500Kg,1100lb
Lowest Height(mm)	285/380	290/390
Max.Height(mm)	900	900
Table Dimensions(mm)	820×500×50	820×500×55
Total Length(mm)	1200	1200
Length of Handle(mm)	980	980
Net Weight(Kg)	80	85

Material	Nylon, UHMWPE, HDPE, Carbon steel /stainless steel/rubber coated/aluminum alloy/PVC, Rubber
Color	Black, White/customized, Customer Request, blue/yellow/red or as buyer's requirements, Red
Application	Coal mining industry, Trolley, stringing, material handling equipments conveyor roller, Mining
Product name	Ball Transfer, PVC gravity conveyor rollers, Belt Conveyor Impact Roller for coal plant, conveyor idler roller, Automated Roller Conveyor For Cartons
Bearing	6204/6205/6305/6306/6307/6308 plastic bearing housing, NSK, LYC SKF FAG NSK, NTN, Standard or Buyer's Requirements
Size	4 inch, 85*47, Customer Size Accepted, As per customer's request, OD.89-156mm
Length	150mm-3500mm, as demand, 160- 3200 mm
