JTDG Series Stage Electric Chain Hoist for Complex 2D and 3D Motion with 0.1mm Accuracy and Smooth Low-Speed Operation

Name: JTDG Series Stage Electric Chain Hoist for Complex 2D and 3D Motion with 0.1mm Accuracy and Smooth Low-Speed Operation
Brand: Hangzhou JENTAN Machinery Co., Ltd.
SKU: JTDG
Price: 350.00 USD
Availability: InStock

Brand Name:	Jentan
Model Number:	JTDG
MOQ:	1 piece
Price:	Negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500000pcs per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE;GS;EN;ISI;AU;UL;CUL;TUV

Features:

Heavy Duty

Work Duty:

Standard Lifting Height:

Lift Chain:

G80

Standard:

GS/CE

Feature:

Low Headroom

Working Class:

Standard Lifting:

3 M

Lift Speed:

8m/min(5t),7m/min(10t),3.5m/min(16t)

Rated Load:

0.25ton To 5ton

Chain Type:

FEC Chain

Load Chain:

G80

Advantages:

Electromagnetic Brake

Lifting Motor Power:

3.5Kw

Load Chain Diameter:

7.1mm

Motor:

0.12 To 0.75kw

Chain Length:

Standard 3m

Hoist Transformer:

24V / 36V Low Voltage Transformer

Plug:

5 Pins

Lifting Weight:

1Ton Electric Hoist

Lowering Speed:

3m/min

Manufacturer:

Jentan

Surface:

Painting, Chorme

Motor Power:

0.12kw-0.75kw

Work Class:

Hoist Height:

3-12 M

Speed:

Single Speed Or Double Speed

Sling Type:

Chain

Overload Protection:

Included

Packaging Details:

Wooden Box

Highlight:

Stage electric trolley chain hoist

OEM electric trolley chain hoist

electric trolley chain hoist 500 Kg

Product Description

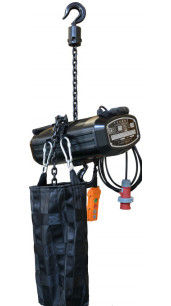

JTDG Series Stage Electric Chain Hoist

The JTDG Series Stage Electric Chain Hoist represents a premium-grade lifting solution specifically engineered for the demanding requirements of entertainment, theatre, and event production industries. Combining robust construction with exceptionally quiet operation, this hoist ensures smooth, precise, and reliable load handling during performances, installations, and rigging operations. Its advanced motor control system provides variable speeds and soft start/stop functions, allowing for delicate positioning of lighting trusses, audio equipment, scenery, and special effects. Built with reinforced components and comprehensive safety systems—including overload protection, phase sequence monitoring, and dual braking—the JTDG series offers both safety and durability under dynamic loads.

JTDG Series Stage Electric Chain Hoist

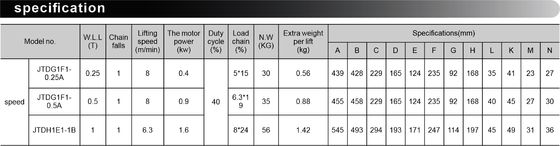

Jentan Code		W.L.L(t)	Chain Falls	Lifting Speed (m/min)	Power (kw)	Duty Circle (%)	Chain Size (mm)	N.W. (kg)	Extra Weight Per Lift (kg)	Dimensions(mm)

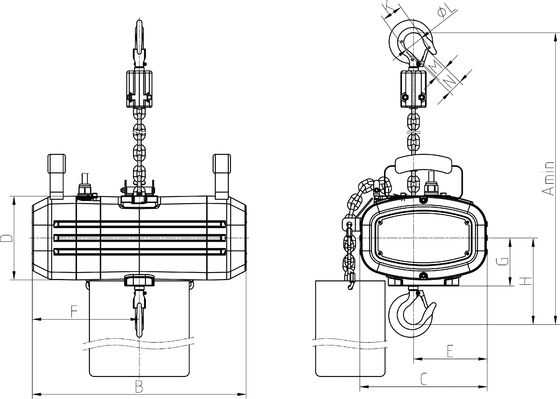

Jentan Code		W.L.L(t)	Chain Falls	Lifting Speed (m/min)	Power (kw)	Duty Circle (%)	Chain Size (mm)	N.W. (kg)	Extra Weight Per Lift (kg)	A	B	C	D	E	F	G	H	L	K	M	N
Single Speed	JTDG1F1-0.25A	0.25	1	8	0.4	40	5X15	30	0.56	439	428	229	165	124	235	92	168	35	41	23	27
	JTDG1F1-0.5A	0.5	1	8	0.9		6.3X19	35	0.88	455	458	229	165	124	235	92	168	40	45	27	30
	JTDG1E1-1B	1	1	6.3	1.6		8X24	56	1.42	545	493	294	193	171	247	114	197	45	49	31	36
