Custom Hoist Geared Trolley 2 Ton For Wharf Material Handling

Name: Custom Hoist Geared Trolley 2 Ton For Wharf Material Handling
Brand: Hangzhou JENTAN Machinery Co., Ltd.
SKU: JTGT-A
Price: 2,258.80 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Jentan

Certification: CE;GS;EN;ISI;AU;UL;CUL;TUV

Model Number: JTGT-A

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: Negotiation

Delivery Time: 7-60 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 500000pcs per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  Hoist geared trolley 2 ton, Material Handling geared trolley 2 ton, Wharf gear trolley hoist


Power Source:	Manual	Size:	1200mm X 800mm
Application:	Warehouse, Construction Site	Material:	Steel
Operating Temperature:	0-40℃	Color:	Yellow
Usage:	Industrial	Lifting Height:	2m
Safety Features:	Overload Protection	Type:	Forklift
Warranty:	1 Year	Weight:	100kg
Load Capacity:	500kg

Power Source:	Manual
Size:	1200mm X 800mm
Application:	Warehouse, Construction Site
Material:	Steel
Operating Temperature:	0-40℃
Color:	Yellow
Usage:	Industrial
Lifting Height:	2m
Safety Features:	Overload Protection
Type:	Forklift
Warranty:	1 Year
Weight:	100kg
Load Capacity:	500kg

Description

Custom Hoist Geared Trolley 2 Ton For Wharf Material Handling

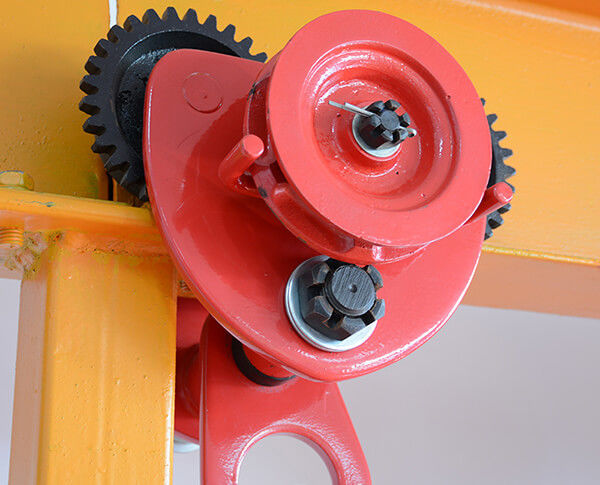

JTGT-A Geared Trolley

It is driven by pulling the hand chain and travels along the lower edge of I-beam.
It applicables to factories,mine , wharf, dock,warehouse,construction site and machine room,etc.
It is used to install the machine equipment and lift goods.

It is suitable for the work environment without power.
Safety and simply maintenance.
Compact structure and small package size.
The distance between its wheels is easy to adjust and can be used in many kinds of I-beam.
It's so high transmission efficiency that do need less output.
It can be drived in a small turning diameter.
The hinge linkes the left and right side plate to guarantee equal force.

Get a product quote 400 711 1588
Call the service hotline PDF Download

Don't load exceeding the rated capacity of the hand trolley.
To avoid accidents working or passing under a load is strictly forbidden.
Regularly fill the grease on the bearings and rail surfaces. Meantime check whether there is any loose on the firmware.
If there are any anomalous situations, stop using the product immediately and Check the cause to remove it .
Regularly maintenance is needed.

Custom Hoist Geared Trolley 2 Ton For Wharf Material Handling 0

Capacity	I-Beam	Net weight	Rated	Dimensions(MM)
(T)	width(MM)	(KG)	load(KN)	A	B	C	H
0.5T	68-126	7.8	6.25	283	213	200	150
1T	80-146	11.2	12.5	317	260	253	170
2T	80-168	13	25	360	300	310	180
3T	88-168	27	37.5	380	345	357	190
5T	100-180	39	62.5	400	395	400	210
