Controlled Lifting Hand Winch 4x4 With Fully Automatic Brake System

Name: Controlled Lifting Hand Winch 4x4 With Fully Automatic Brake System
Brand: Hangzhou JENTAN Machinery Co., Ltd.
SKU: JTHW-A
Price: 2,258.80 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Jentan

Certification: CE;GS;EN;ISI;AU;UL;CUL;TUV

Model Number: JTHW-A

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: Negotiation

Delivery Time: 7-60 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 500000pcs per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Lifting hand winch 4x4, Fully Automatic hand winch 4x4, 4x4 hand winch with brake


Control System:	Remote Control / Manual	Durability:	Heavy Duty
Maintenance:	Easy To Maintain	Portability:	Portable / Stationary
Material:	Steel / Aluminum	Lifting Height:	Up To 20 Meters
Speed:	Adjustable	Operating Environment:	Indoor / Outdoor
Type:	Manual / Electric	Safety Features:	Overload Protection / Emergency Stop
Usage:	Industrial / Construction	Capacity:	Up To 10 Tons
Certifications:	CE / ISO 9001	Power Source:	Electric / Hydraulic

Control System:	Remote Control / Manual
Durability:	Heavy Duty
Maintenance:	Easy To Maintain
Portability:	Portable / Stationary
Material:	Steel / Aluminum
Lifting Height:	Up To 20 Meters
Speed:	Adjustable
Operating Environment:	Indoor / Outdoor
Type:	Manual / Electric
Safety Features:	Overload Protection / Emergency Stop
Usage:	Industrial / Construction
Capacity:	Up To 10 Tons
Certifications:	CE / ISO 9001
Power Source:	Electric / Hydraulic

Description

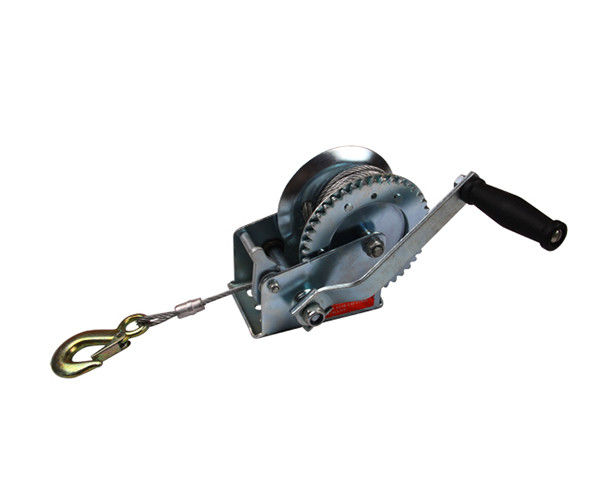

Controlled Lifting Hand Winch 4x4 With Fully Automatic Brake System

JTHW-A Hand Winch

· Suited for a range of lifting and lowering tasks, including hoisting boats on davits or adjusting the height of sailboat keels.

· Equipped with self-locking brake winches to enhance safety and control during various lifting and pulling operations.

· The automatic friction brake guarantees a steady, positive holding action, preventing any unintended load movement.

· The brake system operates fully automatically, ensuring that the load remains securely in position when the handle is released.

JC-B型手摇绞车



JC-B型手摇绞车性能参数表 JC-B WINCH SPEIFICATIONS
JC-B型手摇绞车性能参数表 JC-B WINCH SPEIFICATIONS
规格 Model			600lb	800lb	1000lb	1200lb	1400lb	2000lb	2500lb
额定载重量 Rated capacity		lb	600	800	1000	1200	1400	2000	2500
试验载荷 Test load		KN	4.1	5.4	6.8	8.2	9.5	13.6	17
单速/双速 Singlespeed/double speed			单速 Single	单速 Single	单速 Single	单速 Single	单速 Single	双速 Double	双速 Double
速比 Transmission ratio			2.9:1	3.7:1	4.2:1	4.2:1	4.2:1	10.35:1 4.5:1	11.5:1 5:1
最大手摇力 Hand operated strength		N	70	75	85	100	120	150	160
主要尺寸 mm Dimensions	A		Φ21	Φ21	Φ21	Φ21	Φ21	Φ27	Φ27
	B		Φ116	Φ116	Φ135	Φ135	Φ135	Φ150	Φ165
	C		51	51	51	51	51	65	65
	D		119	119	119	119	119	174	174
	E		Φ25	Φ25	Φ25	Φ25	Φ25	Φ25	Φ25
	F		228	228	228	228	228	281	281
	G		91	91	91	91	91	91	91
	H		138	138	156	156	156	182	191
	J		165	156	184	184	184	250	256
	R		180	180	180	180	180	251	251
净重(不含钢丝绳) Net weight(no wire rope)		kg	2.4	2.5	2.8	2.8	2.8	5.9	6.4
